Heating

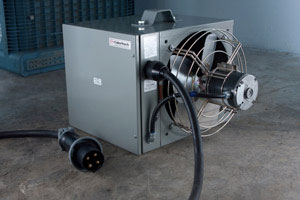

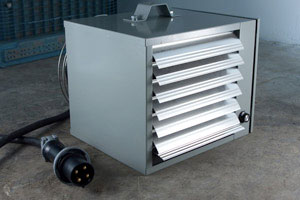

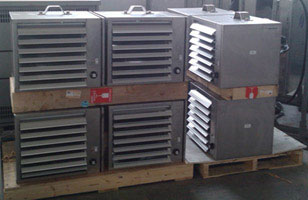

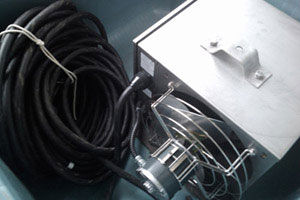

Forced Air Heaters - Heavy Duty 50 kW Heater



Height 18½"

Width 23"
Depth 29"
Weight 125 Lbs
50 Amps 600v 3 phase.

Heating Heater

Heater

Heater

Application

Our line of heaters has been designed specifically for heavy duty use in industrial environments and in public places.

This system uses NO air ducts. The heater produces an amazing 170600 BTU/hrs. The unit with no cable weighs 125 lbs. The small heaters can hang or be used on the ground. They are ideal for tents, warehouses, theatres or anywhere temporary heating is needed.

To supply power to these extremely efficient units, Production Power Corporation has cable, transformers, cable mats, distribution and generators on hand. Call us to supply your electrical and heating needs.



STANDARD FEATURES:

  • CSA approved for horizontal and vertical air flow
  • Automatic reset high limit
  • 50 kw units incorporate split loads (50%) for remotely controlled energy management systems
  • Factory installed transformers, contactors, and thermostats where specified
  • Individually adjustable louvers
  • Factory balanced aluminum fan blade
  • Fan delay in “ON” and “OFF” cycles
  • Full sized control panel with hinged removable door, constructed to EEMAC 12 standards
  • “Fan Only” terminals for connection to remote switch
  • 14 Gauge steel cabinet
  • Epoxy painted (ASA 61 Grey) for superior resistance to corrosion
  • 1/3 Hp motor with sealed ball bearings and totally enclosed construction
  • Pipe clamp is supplied with an 3/4" (19mm) DIA HOLE FOR EASY RIGGING - 5/8"-11 UNC BOLT
  • Motor mounted outside of the element bundle eliminating premature failure due to overheating and
    providing easy access for motor maintenance
  • Elements are robust tubular sheathed type with epoxy sealed terminals to eliminate
    contamination from moisture and airborne impurities
Heater Heater

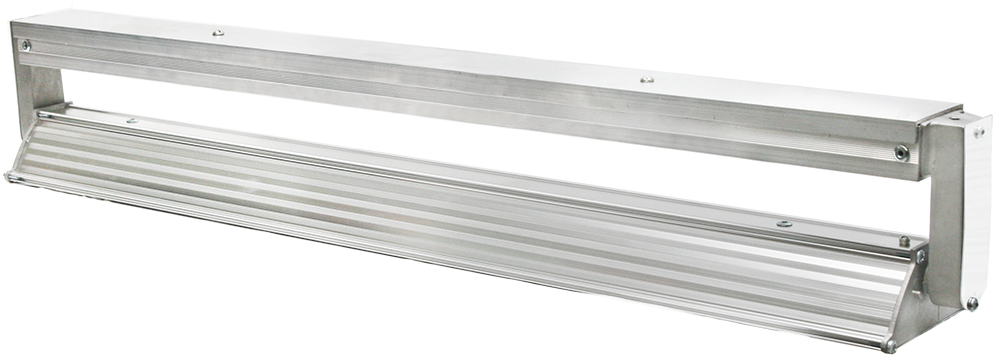

Radiant Heaters - 3-15 kW

Singular Tubular Element

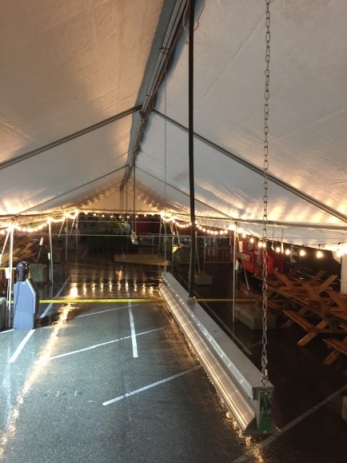

Commonly used for indoor spot heating applications where a great amount of heat is not required and where the mounting height is relatively low. Example installations would include churches, garages, and indoor pools.

Length 73-1/2"
Width 4-1/8"
Depth 4-3/4"
Weight 11.7 lbs
20 Amps 120v;
3.8kw

Heater


Heater

STANDARD FEATURES:

  • The major benefit of infrared heating is its ability to transfer heat to a person or object without heating the surrounding air.
  • Extruded aluminum, anodized and chemically brightened reflectors
  • Comfort Heating

  Forced Air Electric Construction Heater​ - 7kw


FEATURES & SPECS

  • Two stage Operation - Connects to either a 50A or 30A breaker
  • Recessed controls provide protection for switches and knobs.
  • Designed and certified as an unattended source of jobsite heat.
  • Burner coils are supported at both the top and bottom to reduce transport noise and provide extra support for increased coil life.
  • Equipped with a 25°F-95°F thermostat. The heating element cycles on and off to maintain the set temperature.
AMPS 28 / 42 A
OUTPUT 350 CFM
PHASE SINGLE
WATTS 10,000 W
HEATER TYPE ELECTRIC
OUTPUT 34,121 / 23,884 BTU/HR.
OUTPUT 10KW / 7KW
SYSTEM 240V
WEIGHT 35 LBS.
