Production Power Corporation


Generators - 120/208/480V

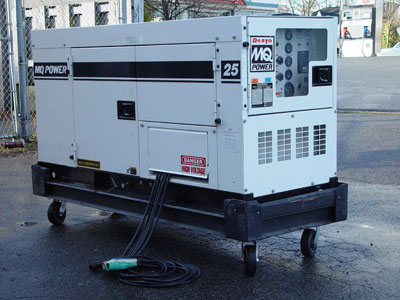

Rolling Skid Mounted 25kVA - 60A 3Ø


Fuel Consumption /hour:

Approximate US Gallons (litres)
Full Load:1.7 g (6.4 l)
3/4 Load: 1.3 g (4.9 l)
1/2 Load: 0.9 g (0.9 l)
1/4 Load: 0.6 g (0.6 l)

Dimensions:

Overal Length: 77 in.
Overal Width: 30 in.
Overal Height: 39 in.
Approx.Wt. Dry : 1543 lbs
17.17 g - 65 l Fuel Tank

Performance Data:

Standby Output: 22 kW (27 kVA)
Prime Output: 20 kW (25 kVA)
Amps - Three Phase 120V: 180A
Amps - Three Phase 220V: 60A
Amps - Three Phase 480V: 30A
25 kVA Generator

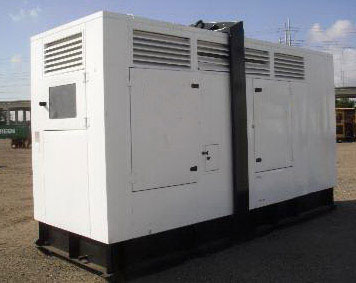

Onan 350KW Genset Station


Fuel Consumption /hour:

Approximate US Gallons (litres)
Full Load:22.4 g (85 l)
3/4 Load: 17.3 g (65 l)
1/2 Load: 12.5 g (47 l)
1/4 Load: 7.6 g (29 l)

Dimensions:

Overal Length: 22 ft.
Overal Width: 7 ft.
Overal Height: 10 ft.
Approx.Wt. Dry: approx.(15000 lbs)

200 g - 757 l Fuel Tank

Performance Data:

Standby Output: 350 kW( 438kVA)
Prime Output: 315 kW( 394kVA)
Amps - Three Phase 120V: 1214A
Amps - Three Phase 220V: 665A
Amps - Three Phase 480V: 526A
350 kVA Generator
